ProfiJet
SC-3204UV
- Printhead Configuration: 4 × Epson I3200-U1 with Automatic Cleaning and Spray Moisturizing System
- Maximum Print Width: 3200 mm (3.2 m)
- Compatible Media: Ultra-Clear PET, Backlit Films, Canvas, Velvet Fabrics, Banners, Blockout Media
- Production speed: Up to 36 m²/h

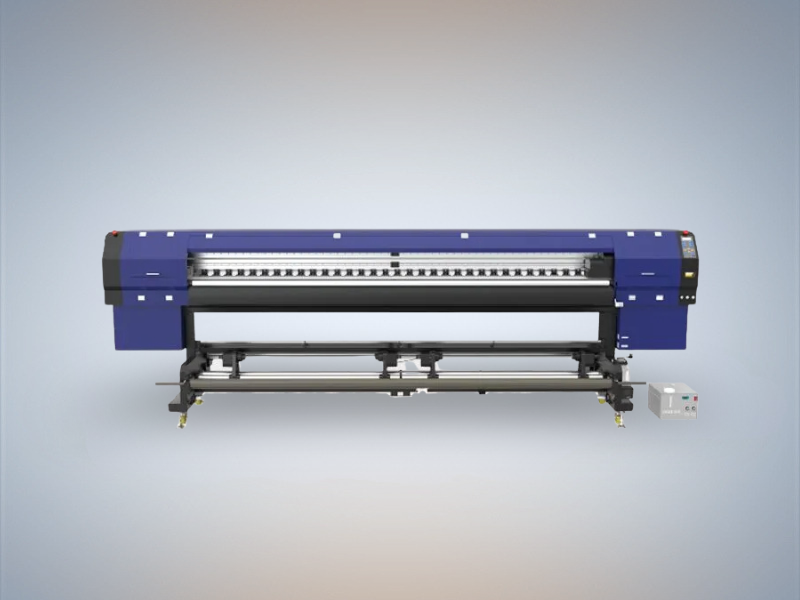

Industrial 3.2-Meter UV LED Wide-Format Powerhouse
The PROFIJET SC-3204UV is engineered for the most demanding large-format printing applications. This powerful industrial UV printer offers an impressive maximum print width of 3.2 meters, eliminating the limitations of traditional eco-solvent printers. Thanks to UV LED curing technology, ink droplets are instantly cured on the media surface, enabling the immediate production of highly saturated, weather-resistant banners, tarpaulins, and other large-format graphics.
Equipped with four industrial Epson I3200-U1 printheads, the PROFIJET SC-3204UV delivers exceptional reliability and consistent performance, even during continuous 24/7 production. In addition to standard roll media, it handles specialty materials such as artist canvas and premium velvet fabrics, providing maximum production flexibility.
Key Features That Maximize Productivity
Multi-Layer Printing in a Single Pass
With the optional CMYK + White + Varnish configuration, the printer produces textured effects, premium finishes, and striking day-and-night backlit graphics in a single printing cycle.

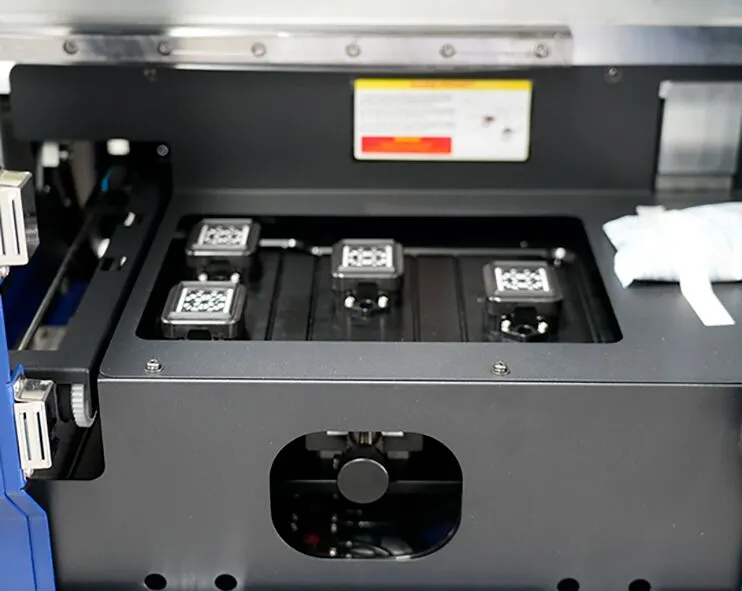

Automatic Spray Moisturizing System
An advanced printhead maintenance system with automatic spray humidification helps prevent nozzle clogging during extended production runs.
4 Independent Vacuum Zones
The segmented vacuum table provides precise media stabilization across different media widths, preventing wrinkles and ensuring accurate media transport.
Premium RIP Software Compatibility
Full support for Onyx, PhotoPrint, Caldera, and Maintop enables professional ICC color management and optimized ink consumption.
PROFIJET SC-3204UV Printing Speeds
⚠️ Important Production Information: The maximum print speeds listed below have been determined and are achievable with the printer's maximum printhead configuration.
Production Mode
| Print Configuration | Speed |
|---|---|
| CMYK Only | Up to 36 m²/h |
| Multi-Layer Mode (C + W + C) | Up to 9 m²/h |
| Full Configuration (C + W + C + V) | Up to 9 m²/h |
Standard Mode
| Print Configuration | Speed |
|---|---|
| CMYK Only | Up to 26 m²/h |
| Multi-Layer Mode (C + W + C) | Up to 6 m²/h |
| Full Configuration (C + W + C + V) | Up to 6 m²/h |
