TBP05-2218-RQ

JWEI TBP05-2218-RQ

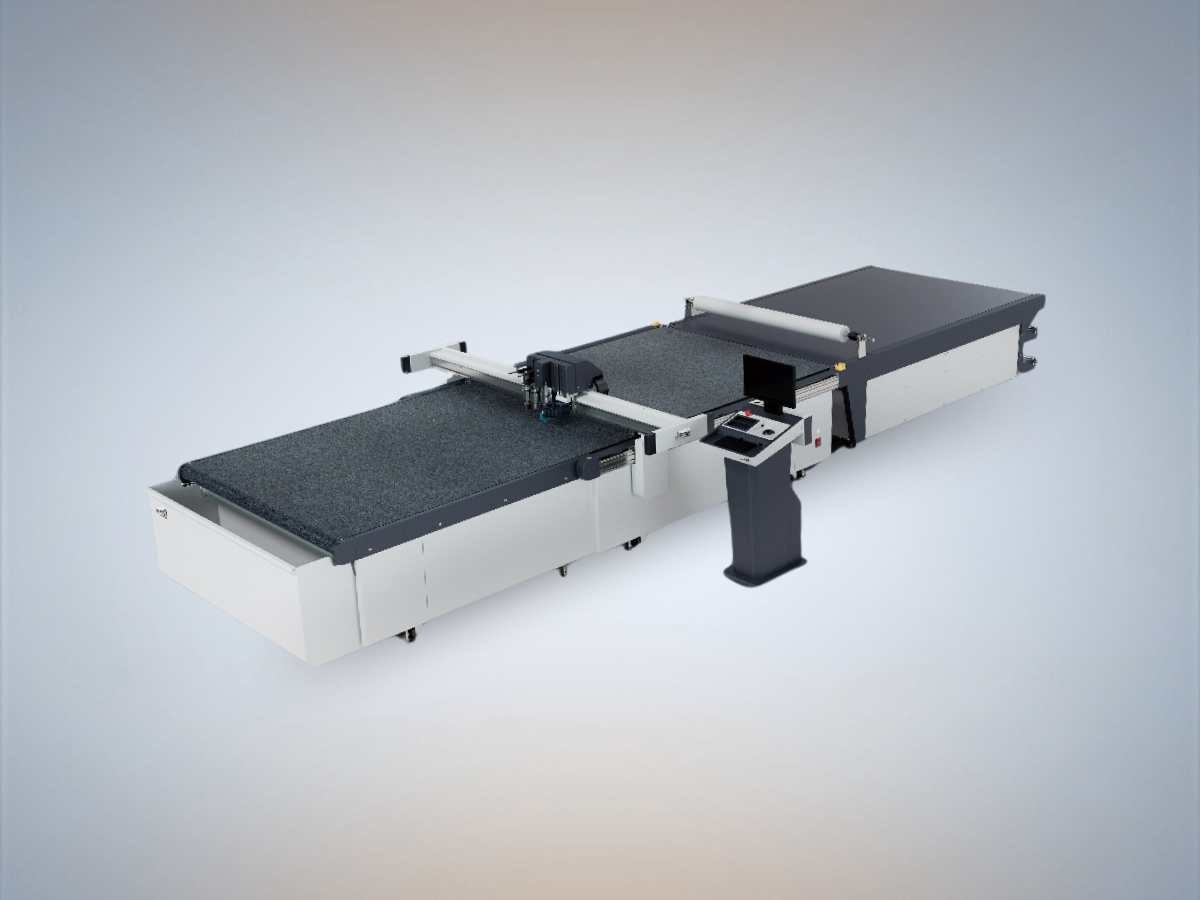

The JWEI TBP05-2218-RQ is an industrial digital fabric cutting machine designed for precision processing of textiles, garment materials and flexible media.

The machine is primarily designed for small-batch production, fast-response manufacturing, garment prototyping and high-quality customized apparel production.

It provides an effective cutting area of 2200 × 1800 mm and reaches a maximum cutting speed of 1600 mm/s. The system supports a wide range of materials, including knitted fabrics, woven fabrics, leather, fur, technical textiles and foam materials.

Garment Production and Small-Batch Manufacturing

The TBP05-2218-RQ is designed for fast digital cutting of garment components without the need for traditional physical dies.

The machine is suitable for the production of:

• customized garments,
• sportswear,
• underwear,
• team uniforms,
• school uniforms,
• workwear,
• garment prototypes,
• short production runs.

The digital workflow allows users to move quickly from CAD files to finished garment patterns.

Dual Punching Module

The machine can be equipped with an independent punching module for high-speed straight-notch and V-notch punching.

The rotary punch / needle punch can also create positioning marks for applications such as darts and pockets.

The system supports precise external V-notch cutting and internal corner cutting without overcutting.

For specific operations, the minimum gap can be as small as 2 mm.

Four-Cartridge Inkjet Module

The optional four-cartridge inkjet module produces clear and precise lines and markings directly on the material.

The cutting-to-print alignment error is controlled within 1 mm.

Line thickness can be adjusted, while extended cutting files can be continuously processed across multiple sections.

Visual Stripe and Plaid Matching System

The visual stripe and plaid matching system automatically matches fabric patterns with the CAD layout.

The operator can simply lay the fabric flat, while the vision system automatically recognizes and aligns the pattern.

This solution is particularly useful for garments made from plaid and striped fabrics.

Brand-New Control System

The TBP05-2218-RQ features a new control system that increases arc-turning speed and allows tool rotation during movement.

Combined with a high-performance servo motor, the system provides faster cutting and improved overall production efficiency.

Following Suction System

The upgraded vacuum system provides stronger and more stable material fixation.

It is particularly useful when cutting:

• small pieces,
• small angles,
• flexible fabrics,
• materials prone to shifting.

Localized suction around the cutting area helps maintain material stability during processing.

Automatic Waste Removal

The optional automatic waste removal system is activated as the cutting table rolls.

It allows fast cleaning of the working surface and reduces the need for manual removal of material waste.

Tools

The TBP05-2218-RQ can be equipped with a range of tools designed for textile processing.

Available tools include:

• rotary tools,
• oscillating tools,
• cutting tools,
• positioning tools,
• I/V notching tools,
• rotary punch needle / punching tools,
• plotting tools,
• brush tools,
• inkjet tools.

1 mm Oscillating Cutting Tool

The optional 1 mm oscillating cutting tool uses a Swiss-made micro-motor reaching up to 18,000 RPM.

It is designed for precision cutting of textile-backed laminates, garment interlining laminates, leather and synthetic leather.

5 mm Oscillating Cutting Tool

The 5 mm oscillating cutting tool uses a Swiss-made micro-motor reaching up to 7,000 RPM.

Its over-cut compensation system helps minimize overcutting at notches and complex corners.

Multiple blade angles are available to match different material requirements.

Rotary Knife Cutting Tool

The rotary knife cutting tool is available with multiple blade options and can be used for single-layer and limited multi-layer materials.

It supports various woven and knitted textiles as well as selected technical fabrics.

Materials

The JWEI TBP05-2218-RQ can process a wide range of materials, including:

• knitted fabrics,
• woven fabrics,
• fur,
• leather,
• sheepskin,
• Oxford cloth,
• canvas,
• foam materials,
• PU/PVC synthetic leather,
• cotton-linen fabrics,
• blended fabrics,
• bagging fabrics,
• upholstery fabrics,
• carpet textiles.

Applications

The JWEI TBP05-2218-RQ is suitable for:

• garment production,
• bespoke tailoring,
• sportswear production,
• underwear production,
• uniform manufacturing,
• school uniform production,
• workwear production,
• small-batch manufacturing,
• prototyping,
• garment sampling.

The system combines digital cutting, positioning, marking and punching into an integrated solution for fast garment production and sampling.
