ProfiJet
ST-3220GN/RN
- Number of Printheads: 2–8, optional
- Printhead Type: Ricoh G5/G6
- G6 Print Resolution: 2400 dpi
- G6 Productivity: Standard Mode: 36.8 m²/h; Production Mode: 26 m²/h; High Precision Mode: 18.2 m²/h
Industrial Print Precision on Rigid Materials up to 80 mm Thick

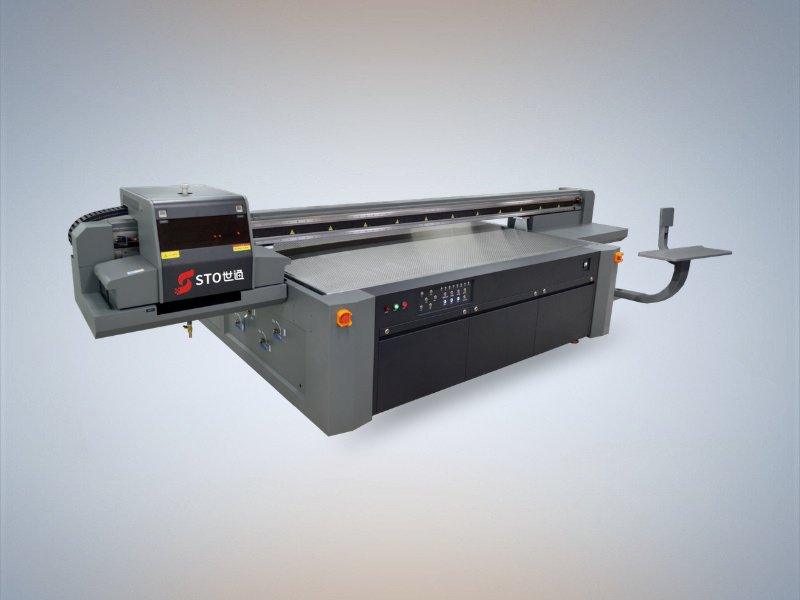

The PROFIJET ST-3220GN/RN is a high-performance industrial UV flatbed printer designed for businesses specializing in direct printing on rigid substrates. Its 3200 × 2000 mm print area enables the production of large-format advertising elements, POS materials, interior décor, furniture fronts, glass, acrylic, composite panels, wood, PVC, and many other substrates.
The printer can be equipped with 2 to 8 Ricoh G5 or Ricoh G6 printheads, allowing the configuration to be tailored to the required productivity and investment budget. With a maximum resolution of 2400 dpi, the printer delivers excellent detail reproduction, smooth tonal transitions, and vibrant colors.
An automatic white ink circulation system prevents pigment sedimentation, maintains stable ink system operation, and ensures consistent print quality during extended production runs.
Key Features of the PROFIJET ST-3220GN/RN
- Ricoh G5 / Ricoh G6 printheads – flexible configurations for an optimal balance of productivity and print quality.
- Supports materials up to 80 mm thick – ideal for glass, wood, stone, acrylic, metal, PVC, and composite panels.
- Resolution of up to 2400 dpi ensures exceptional precision and high-quality decorative and advertising prints.
- Automatic white ink circulation improves operational stability and extends the service life of the ink system.
- 3200 × 2000 mm print area enables direct printing on large-format sheets.
- Flexible color configuration: CMYK, Light Cyan, Light Magenta, White, and Varnish.
⚠ Important Production Information: The maximum print speeds listed below are specified and achievable with the maximum printhead configuration of the machine.
Standard Mode (Ricoh G6): up to 36.8 m²/h (high-volume production of advertising and POS materials) Production Mode (Ricoh G6): up to 26 m²/h (optimal balance between print quality and productivity) High Precision Mode (Ricoh G6): up to 18.2 m²/h (decorative printing, glass, panels, and premium-quality graphics)
